Models

The user can pick between three different model types, when using anemoi-training:

  1. Graph Neural Network (GNN)

  2. Graph Transformer Neural Network

  3. Transformer Neural Network

Currently, all models have a Encoder-Processor-Decoder structure, with physical data being encoded on to a latent space where the processing takes place.

For a more detailed read on connections in Graph Neural Networks, Velickovic (2023) is recommended.

Processors

The processor is the part of the model that performs the computation on the latent space. The processor can be chosen to be a GNN, GraphTransformer or Transformer with Flash attention.

GNN

The GNN structure is similar to that user in Keisler (2022) and Lam et al. (2023).

The physical data is encoded on to a multi-mesh latent space of decreasing resolution. This multi-mesh is defined by the graph given in config.hardware.files.graph.

../_images/gnn-encoder-decoder-multimesh.jpg

GNN structure

On the processor grid, information passes between the node embeddings via simultaneous multi-message-passing. The messages received from neighboring nodes are a function of their embeddings from the previous layer and are aggregated by summing over the messages received from neighbours. The data is then decoded by the decoder back to a single resolution grid.

Graph Transformer

The GraphTransformer uses convolutional multi-message passing on the processor. In this case, instead of the messages from neighbouring nodes being weighted equally (as in the case for GNNs), the GNN can learn which node embeddings are important and selectively weight those more through learning the attention weight to give to each embedding.

Note that here, the processor grid is a single resolution whih is coarser than the resolution of the base data.

Transformer

The Transformer uses a multi-head self attention on the processor. Note that this requires flash-attention to be installed.

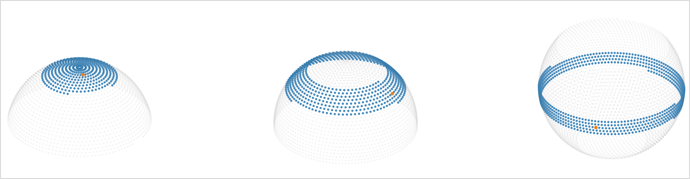

Thhe attention windows are chosen in such a way that a complete grid neighbourhood is always included (see Figure below). Like with the GraphTransformer, the processor grid is a single resolution which is coarser than the resolution of the base data.

../_images/global-sliding-window-attention.png

Attention windows (grid points highlighted in blue) for different grid points (red).

Encoders/Decoders

The encoder and decoder can be chosen to be a GNN or a GraphTransformer. This choice is independent of the processor, but currently the encoder and decoder must be the same model type otherwise the code will break,
