Parallelisation
There are two types of parallelisation which users can use in anemoi-training:
Data Distributed
Model Sharding
These can either be used individually or both at the same time.
Data-Distributed
This is used automatially if the number of parallel data GPUs = number
of GPUs available/number of GPUs per model is an integer greater than
1. In this case the batches will be split across the number of parallel
data GPUs meaning that the effective batch size of each training step
will be the number of batches set in the dataloader config file
multiplied by the number of parallel data GPUs.
Model Sharding
It is also possible to shard the model across multiple GPUs as defined by the Distributed Data Parallel (DDP) Strategy.

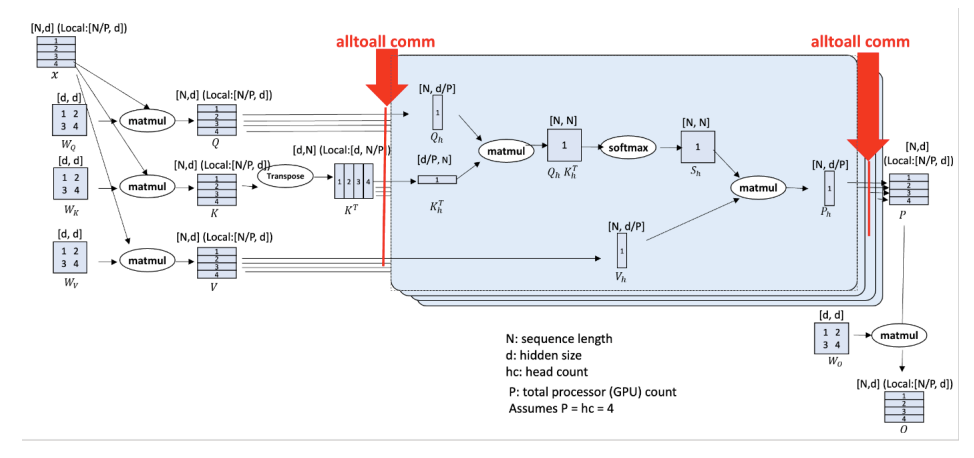

In essence the model is sharded with each GPU receiving a different part of the graph, before being re-integrated when the loss is calculated, as shown in the figure below
Model Sharding (source: Jacobs et al. (2023))
To use model sharding, set config.hardware.num_gpus_per_model to the
number of GPUs you wish to shard the model across. It is recommended to
only shard if the model does not fit in GPU memory, as data distribution
is a much more efficient way to parallelise the training.
When using model sharding, config.dataloader.read_group_size allows
for sharded data loading in subgroups. This should be set to the number
of GPUs per model for optimal performance.
Example
Suppose the job is running on 2 nodes each with 4 GPUs and that
config.hardware.num_gpus_per_model=2 and
config.dataloader.batch_size.training=4. Then each model will be
sharded across 2 GPUs and the data sharded across total number of
GPUs/num_gpus_per_model=4. This means the effective batch size is 16.
